Submersible Effluent Pumps, Effluent Domestic Pumps, India

Submersible Effluent Pumps ( GNS ), Effluent Domestic Pumps, Sewage Pumps

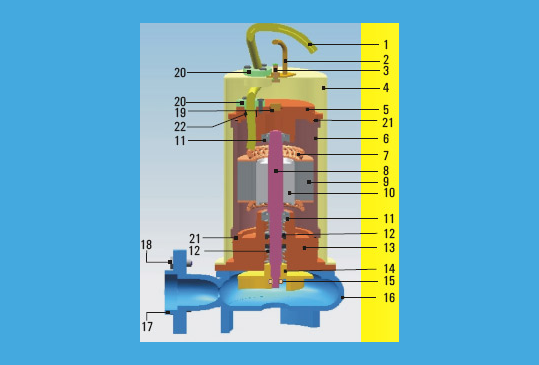

GNS SERIES PUMP CROSS SECTION DIAGRAM

Request a Quote

Harison Pumps Pvt Ltd situated in Nagpur, Maharashtra, India is recognized in the Industrial sector as one of the Manufacturer, Supplier, Exporter of Submersible Effluent Pumps (GNS), Effluent Domestic Pumps, Sewage Pumps

Pumps that are designed to be submersible are placed within the reservoir of water that needs pumping out, mainly used for emptying ponds, drainage in floods.

Sump and Effluent Submersible Pumps are designed to transfer wastewater discharged from a septic tank or an aerobic treatment system to a drain field.

The main advantage of the submersible pump is it never has to be primed, because it is already submerged in the fluid. Submersible pumps are very efficient because they don't really have to spend a lot of energy moving water into the pump.

Different Types of Submersible Pumps are Water Submersible Pumps, Irrigation Submersible Pumps, Sewage Submersible Pumps, Solar Submersible Pumps and Sand Submersible Pumps

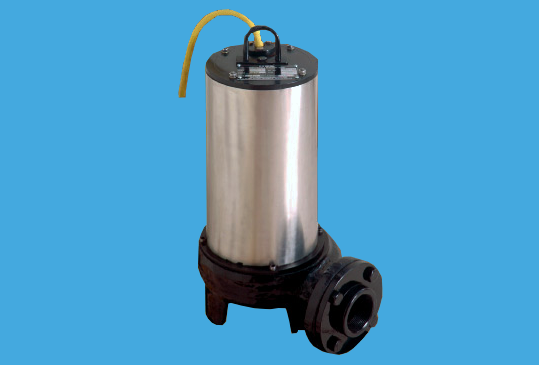

Effluent Pumps (GNS)

GNS Effluent Pumps are designed to handle grey water, light wastewater, and other non-corrosive liquids with suspended solids. Engineered for efficiency and reliability, they are ideal for both domestic and industrial wastewater management where durability and consistent performance are essential.

Key features of Effluent Pumps (GNS):

For handling water: Suspended solids up to 35mm sphere
Impeller: Non-clog vortex type
Motor: 2800 rpm oil filled with "F" class insulation, suitable for three & single phase
Cooling System: Jacketed & coolant filled, suitable for tough conditions and longer dry running
Bearings: Dual ball bearing in oil bath
Seal: Dual mechanical seal
Cable: 1.5 sq.mm x 4 core double sheathed submersible cable (5 mtrs standard, extra on request)
Material: All Cast Iron with stainless steel jacket
Hardware: Stainless Steel for easy maintenance
Discharge: Horizontal with female flange of 50mm

Advantages of Effluent Pumps (GNS):

Robust Construction: Withstands corrosive and abrasive conditions
High Efficiency: Reliable and energy-efficient performance
Corrosion Resistance: Long service life in harsh environments
Submersible Design: Operates fully submerged, space-saving installation
Clog-Resistant Design: Special impellers minimize blockages
Automatic Operation Option: Float switches/control panels can be added
Low Maintenance: Simple design reduces downtime
Wide Range of Capacities: Various flow rates & head capacities available
Sealed Motor Protection: Prevents water ingress and overheating
Versatile Applications: Residential, commercial & industrial usage
Environmental Safety: Ensures safe effluent disposal & hygienic surroundings

For handling water with suspended solids up to 35mm sphere
Non- clog vortex impeller.
Motor- 2800 rpm oil filled with "F" class insulation,suitable for three phase and single phase power supply.
The motor is jacketed & filled with the coolant. Thus the pump is suitable for working in worst of the working conditions having longer dry running capacities
Dual ball bearing running in oil bath.
Dual mechanical seal.
Cable - 1.5 sq. mm. x 4 core double sheathed submersible cable of 5 mtrs length provided as standerd length.
Extra cable can be provided with prior information.
Material Of construction - All Cast Iron with stainless steel jacket.
Stainless Steel hardware for easy MAINTENANCE.
Horizontal discharge with female flange of 50mm.

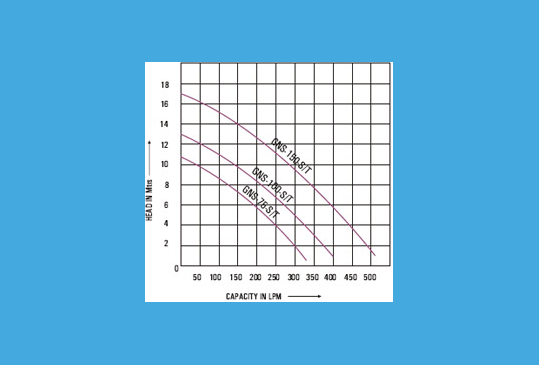

Technical Specification of Effluent Pumps (GNS):

MODEL	GNS -150-S	GNS -100-S	GNS -75-S
	GNS -150-T	GNS -100-T	GNS -75-T
HEAD(M)	(LPM)	(LPM)	(LPM)
2	485	375	295
4	440	325	250
6	390	270	285
8	345	210	125
10	280	145	40
12	220	55	-
14	150	-	-
16	60	-	-
18	-	-	-
20	-	-	-

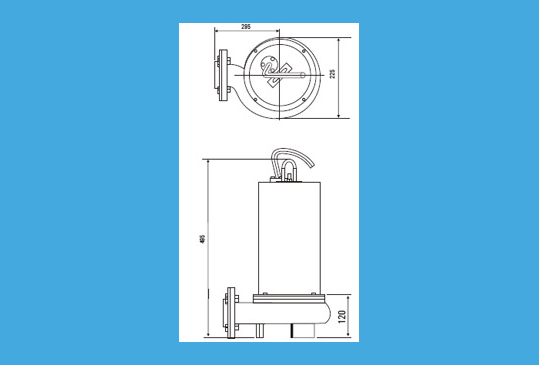

Model	HP/KW	Solid Handling	Power Supply	Delivery Size	Minimum Level of Submergence
GNS-75-S	1.0/0.75	35 mm	1ф,50Hz 230V	50 mm	120 mm
GNS-75-T	1.0/0.75	35 mm	3ф,50Hz 415V	50 mm	120 mm
GNS-100-S	1.5/1.1	35 mm	1ф,50Hz 230V	50 mm	120 mm
GNS-100-T	1.5/1.1	35 mm	3ф,50Hz 415V	50 mm	120 mm
GNS-150-S	2.0/1.5	35 mm	1ф,50Hz 230V	50 mm	120 mm
GNS-150-T	2.0/1.5	35 mm	3ф,50Hz 415V	50 mm	120 mm

Effluent Pumps (GNS) Application Industries:

Wastewater Treatment Plants: For handling treated effluent and transferring partially processed water.
Chemical Industry: For pumping effluent containing chemical residues and by-products.
Pharmaceutical Industry: For safe discharge and transfer of liquid waste streams.
Food & Beverage Industry: For processing plant effluent and wash water.
Textile Industry: For managing dye effluents and wash-water discharge.
Paper & Pulp Industry: For pumping wastewater with fibrous content.
Mining & Minerals: For handling slurry, tailings, and industrial wastewater.
Oil & Gas / Petrochemical Industry: For managing oily wastewater and effluents.
Power Plants: For wastewater handling, cooling tower blowdown, and ash slurry.
Municipal & Domestic Applications: For sewage treatment, septic systems, and drainage.

In View Of Continous Development we Reserve Right to Change Design and / or Dimensions Without Notice
