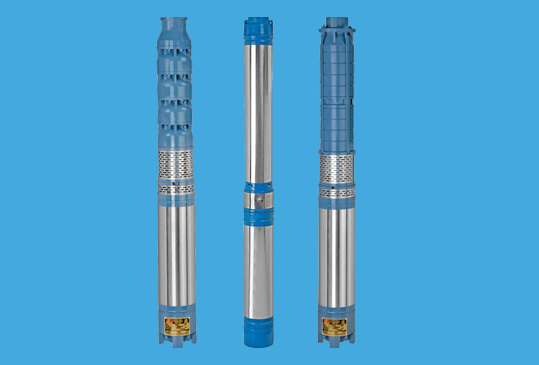

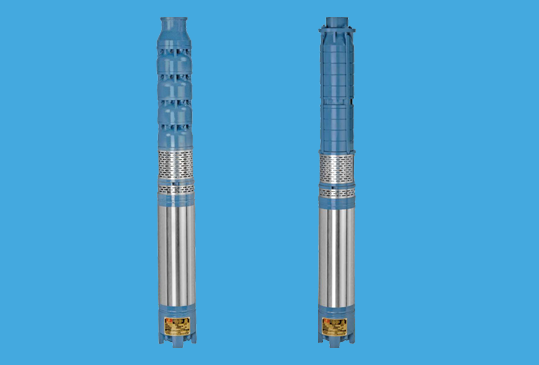

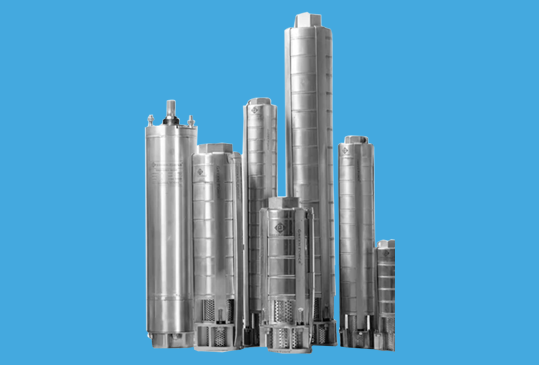

SUBMERSIBLE PUMPS

Request a Quote

We are Manufacturer, Supplier, Exporter of Submersible Pumps and our setup is situated in Nagpur, Maharashtra, India.

Harison Pumps are renowned for their quality and reliability from last 28 years. Harison Pumps offers submersible pumps with high effciency and reliability throughout the range and ideal for wide variety of applica ons. PUMPS Harison Pumps represent state-of-the art hydraulic design. Built to deliver op mum effciency during periods of high demand, these pumps provide low long-term costs and high operating reliability regardless of the application. The Harison range offers high effciency, high resistance to sand and other abrasives, motor burnout protection, and easy maintenance.



Applications

  • Groundwater supply to waterworks
  • Irrigation in horticulture and agriculture
  • High rise building
  • Pressure boosting / Fire fighting
  • Sprinkler and Drip irrigation systems
  • Industrial applications
  • Cooling water circulating system

Features & Benefits

  • State-of-the-art hydraulic provide high efficiency and low operating costs.
  • Sand resistant by SS wearing rings.
  • Motor can withstand wide voltage fluctuations due to use of winding wires wrapped with superior polymer.
  • Robust construction to ensure durability of pumps.
  • All rotating parts are dynamically balanced.
  • Carbon bearing and SS segments used to withstand high thrust load.
  • All guide bush are protected with stand guards.
  • Bearing sleeves are provided with hardcrome plattng for better life in sandy conditions.
  • Rotors are with special epoxy paints for longer life.
  • Modular design, easy interchangeability of parts, easy rewinding.

Material of Construction

Pump Shaft Stainless Steel AISI 410
Suction Housing Cast Iron FG 200 Grade
Impeller Stainless Steel AISI 410/Noryl Glass Filled
Diffuser Cast Iron FG 200 Grade/Noryl Glass Filled
Sleeve AISI 410 with hard chrome plating
Motor Shaft Stainless Steel AISI 410
Stamping Silicon Steel
Casting Parts Cast Iron FG 200 Grade
ThrusT Bearing Carbon V/s S.S.
Copper EC Grade min 99.90%
Winding Wire PVC/Polyster insulated
EC grade copper conductor

Technical Specification

  Submersible Pumps Submersible Agriculture Pumps
75 mm (3 ”) 100 mm (4 ”) 150-200 mm (6”,7” & 8”)
Head Range (Mtr) 6 -109 6-173 10-265
Discharge Range (LPM) 10-90 10-700 65-1850
HP Range 0.5-1.5 0.5-7.5 3-50
Voltage Range 150 V to 230 V ( 1 Phase ) / 250 V to 440 V ( 3 Phase )
