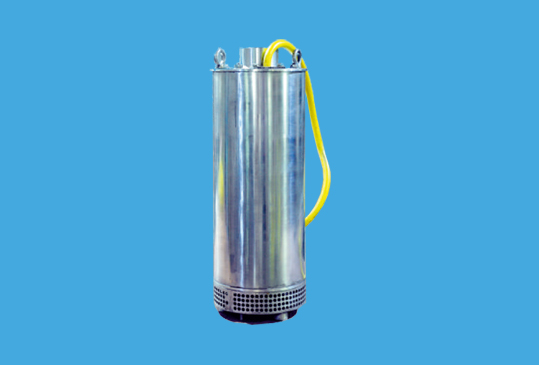

DNS-SUBMERSIBLE DEWATERING PUMP ( DOMESTIC SERIES)

Request a Quote

  • For de watering of basements, cable trenches and low lying areas in residential and small commercial complexes.
  • Motor- 2800 rpm oil filled with "F" class insulation and temperature rise of "B" class, suitable for three phase and single phase power supply.
  • The motor is jacketed & filled with the coolant. Thus the pump is suitable for working in worst of the working conditions dry running.
  • Dual ball bearing running in oil bath.
  • Dual mechanical seal.
  • Cable - 1.5 sq. mm. x 4 core double sheathed cable of 5 mtrs as standerd length.
  • Cable - 1.5 sq. mm. x 4 core double sheathed cable of 5 mtrs as standerd length.
  • Material Of construction - All Cast Iron with stainless steel jacket.
  • Stainless Steel Hardware for easy MAINTENANCE.
  • Vertical discharge with female flange of 40mm.
PART NAME
1.
CABLE
2.
LIFTING HOOK
3.
BOLT
4.
OUTER SHELL
5.
TOP END SHIELD
6.
MOTOR BODY
7.
WINDING WIRE
8.
SHAFT
9.
STATOR
10.
ROTOR
11.
BEARING
12.
MECHANICAL SEAL
13.
BOTTOM END SHELL
14.
IMPELLER
15.
NY-LOCK NUT
16.
CASING
17.
DELIVERY FLANGE
18.
BOLT
19.
DRAIN NUT
20.
CABLE GLAND
21.
'O' RINGS
22.
CABLE GROMMET
Harison Pumps
MODEL
DNS -100-S
DNS -100-T
GNS -75-S
GNS -75-T
(LPM)
(LPM)
2
275
235
4
260
210
6
250
200
8
230
180
10
205
160
12
180
130
14
150
95
16
120
55
18
80
10
20
40
-
Model
HP/KW
Solid Handling
Power Supply
Delivery Size

Minimum Level of Submergence

DNS-75-S
1.0/0.75
8 mm
1ф,50Hz 230V
40 mm
120 mm
DNS-75-S
1.0/0.75
8 mm
3ф,50Hz 415V
40 mm
120 mm
DNS-100-S
1.5/1.1
8 mm
1ф,50Hz 230V
40 mm
120 mm
DNS-100-T
1.5/1.1
8 mm
3ф,50Hz 415V
40 mm
120 mm

In View Of Continous Development we Reserve Right to Change Design and / or Dimensions Without Notice
